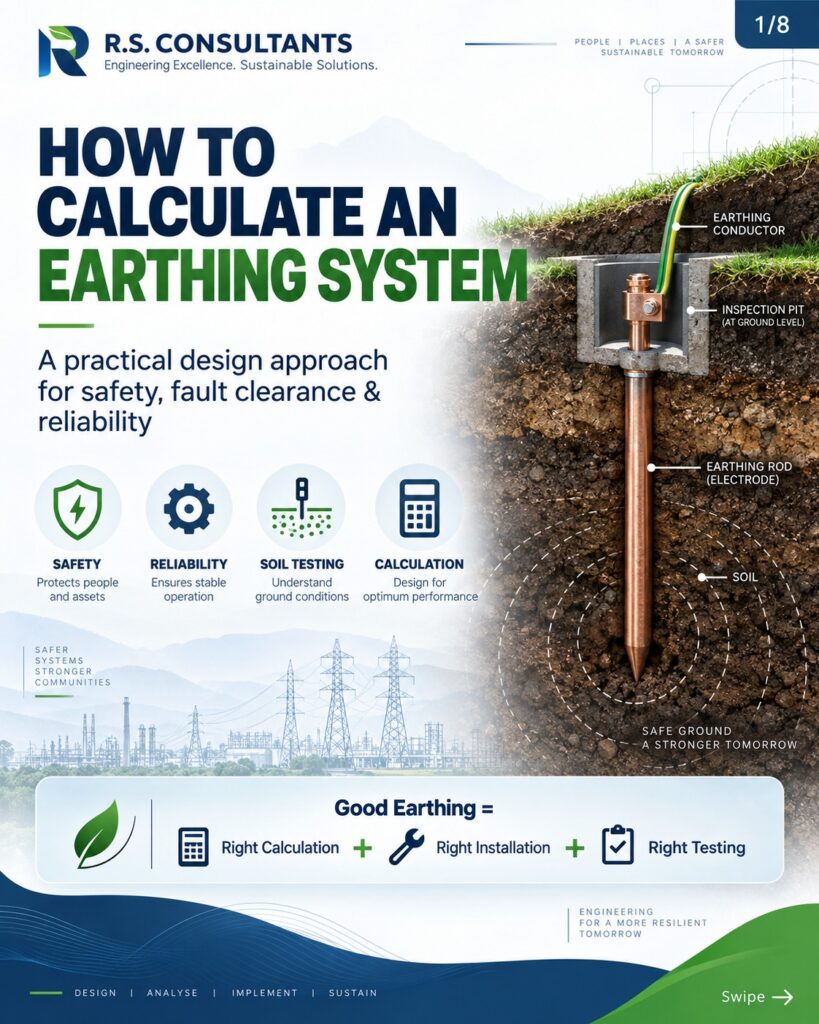

Earthing design should never be based only on a fixed rule such as “one earth pit per equipment.” A reliable system must be designed around soil conditions, fault current, protection time and safety limits.

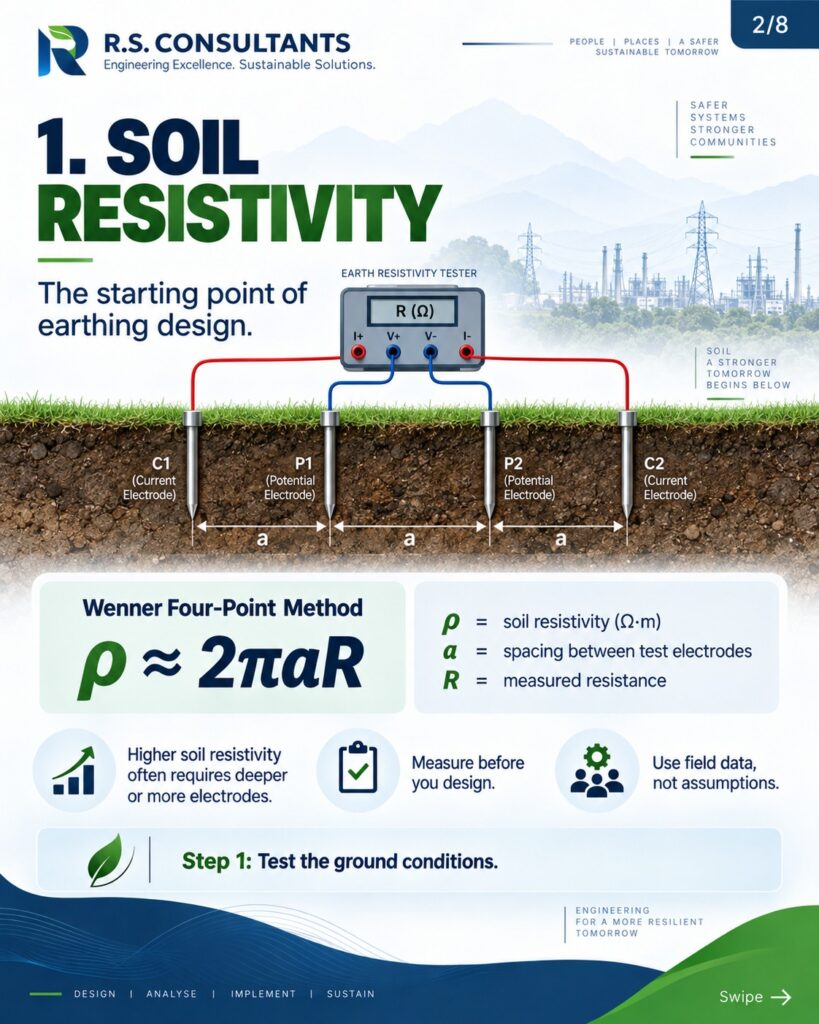

1️⃣ Measure Soil Resistivity

Soil resistivity ρ (Ω·m) is commonly measured using the Wenner four-point method.

For approximately uniform soil:

ρ ≈ 2πaR

Where:
a = spacing between test electrodes
R = measured resistance

Higher soil resistivity generally requires deeper electrodes, more electrodes or a larger earth grid.

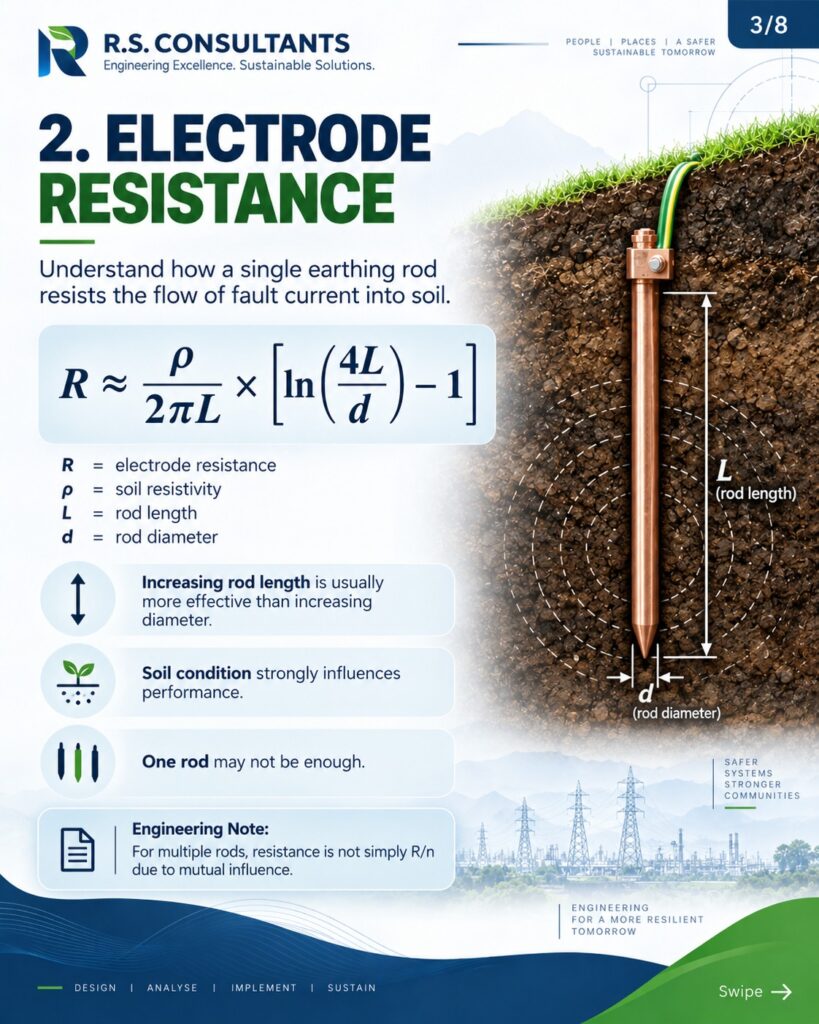

2️⃣ Estimate Electrode Resistance

For a vertical rod, a commonly used approximation is:

R ≈ ρ / (2πL) × [ln(4L/d) − 1]

Where:
L = rod length
d = rod diameter

Increasing electrode length is usually more effective than simply increasing diameter.

⚠️ For multiple rods, resistance is not always R/n because closely spaced electrodes influence each other.

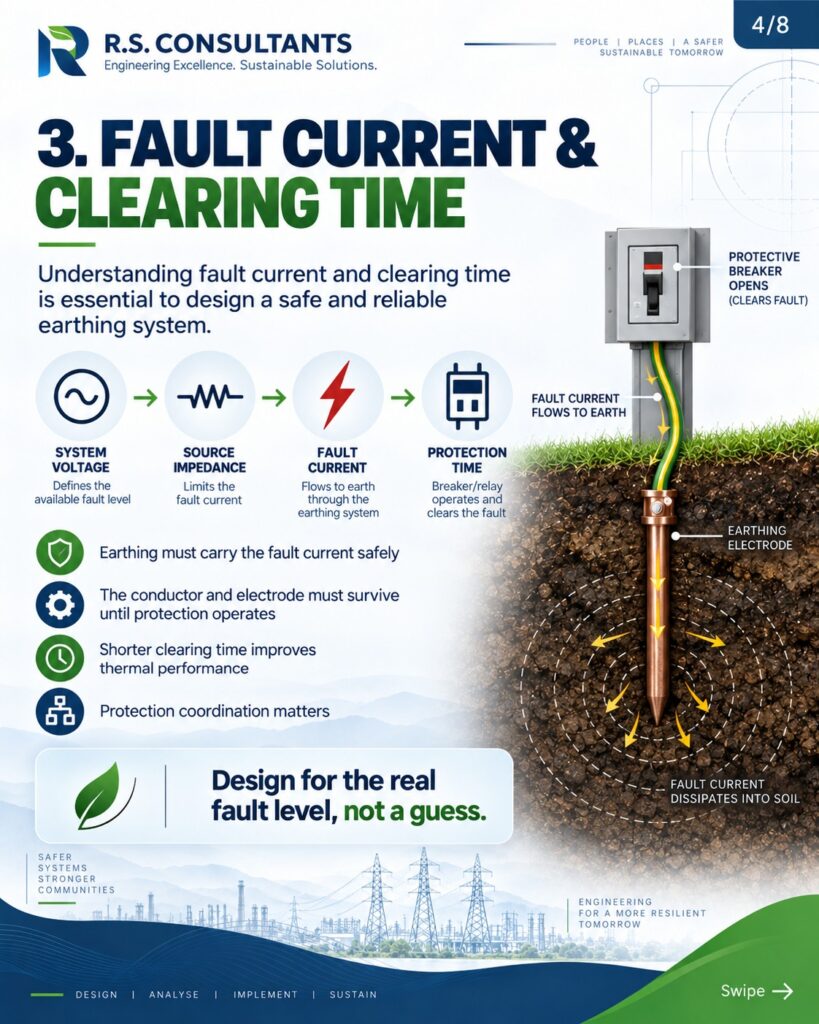

3️⃣ Determine Fault Current

The earthing system must safely carry the expected fault current until the protective device clears the fault.

Consider:

System Voltage → Source Impedance → Fault Level → Earthing Arrangement → Protection Time

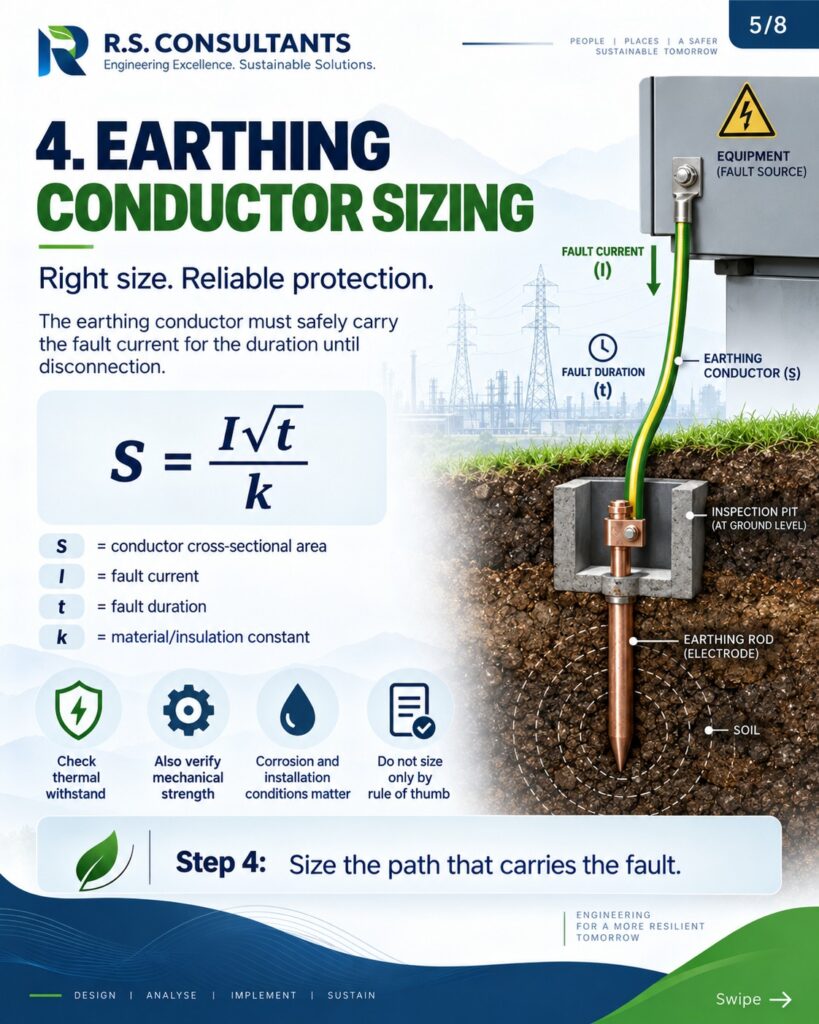

4️⃣ Size the Earthing Conductor

A commonly used adiabatic equation is:

S = I√t / k

Where:
S = conductor size
I = fault current
t = fault-clearing time
k = material/insulation factor

Final sizing should also consider mechanical strength and corrosion.

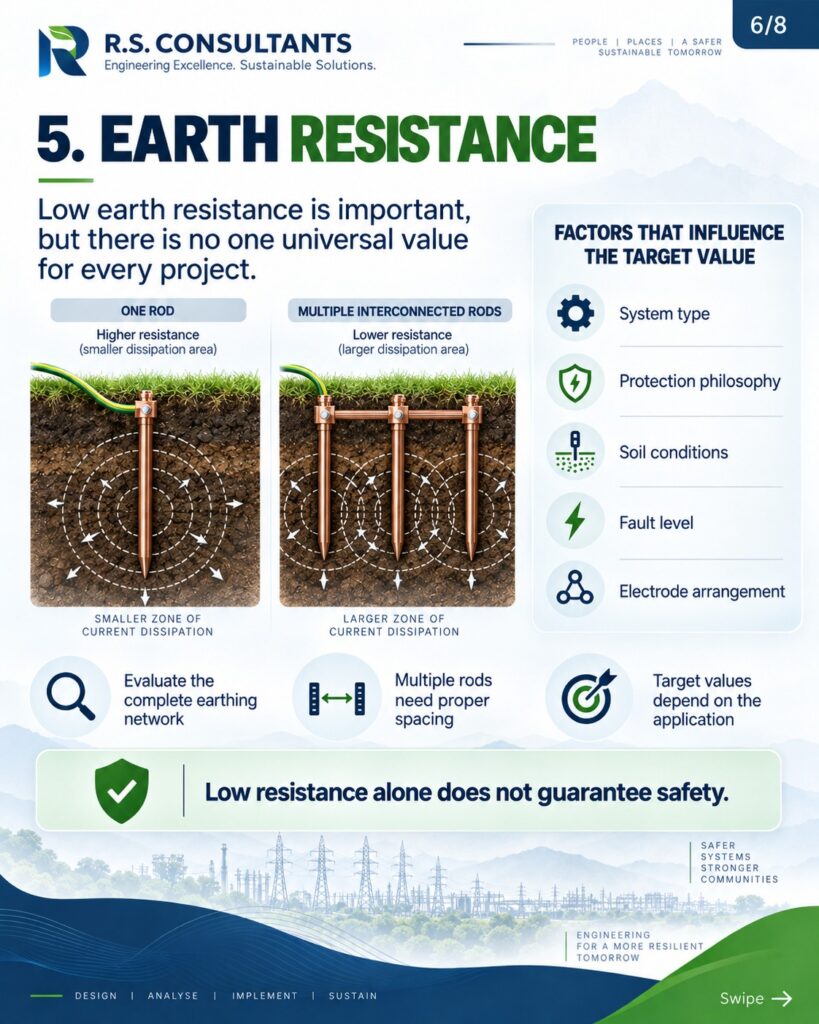

5️⃣ Check Earth Resistance

There is no single earth-resistance value suitable for every project.

The required value depends on:

System Type + Fault Current + Protection + Electrode Arrangement + Soil Conditions

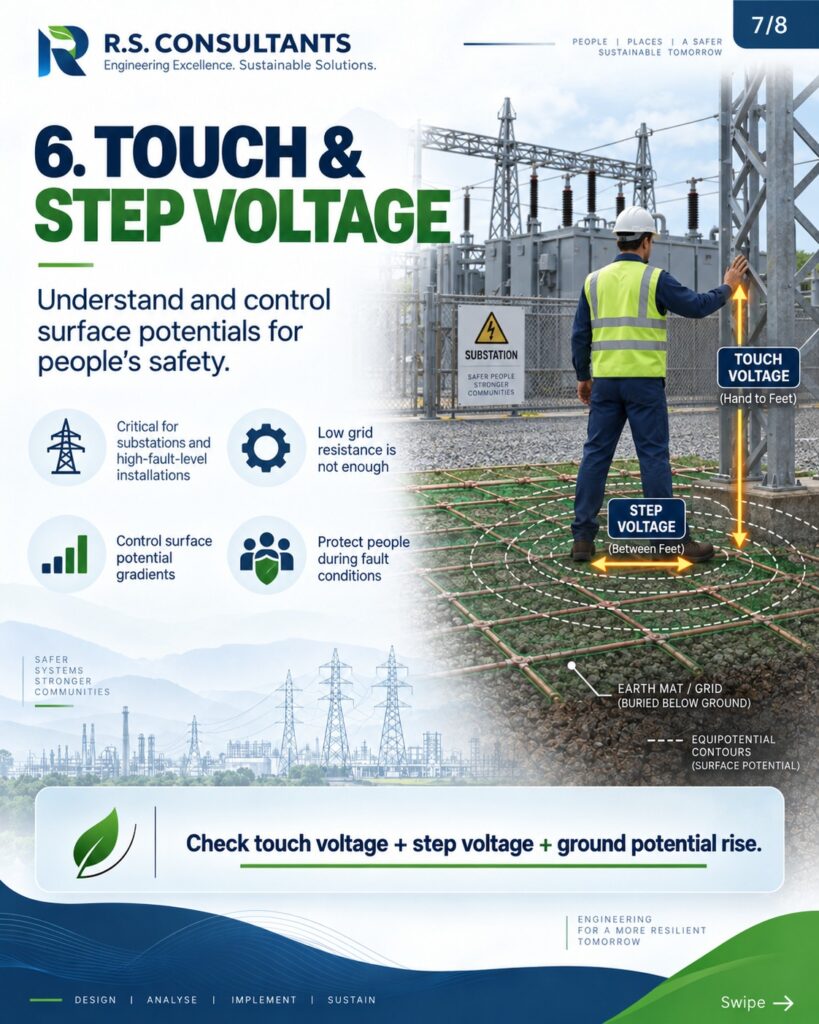

6️⃣ Check Touch & Step Voltage

For substations and high-fault-level installations, low resistance alone is not enough.

The design must also control:

Touch Voltage + Step Voltage + Ground Potential Rise

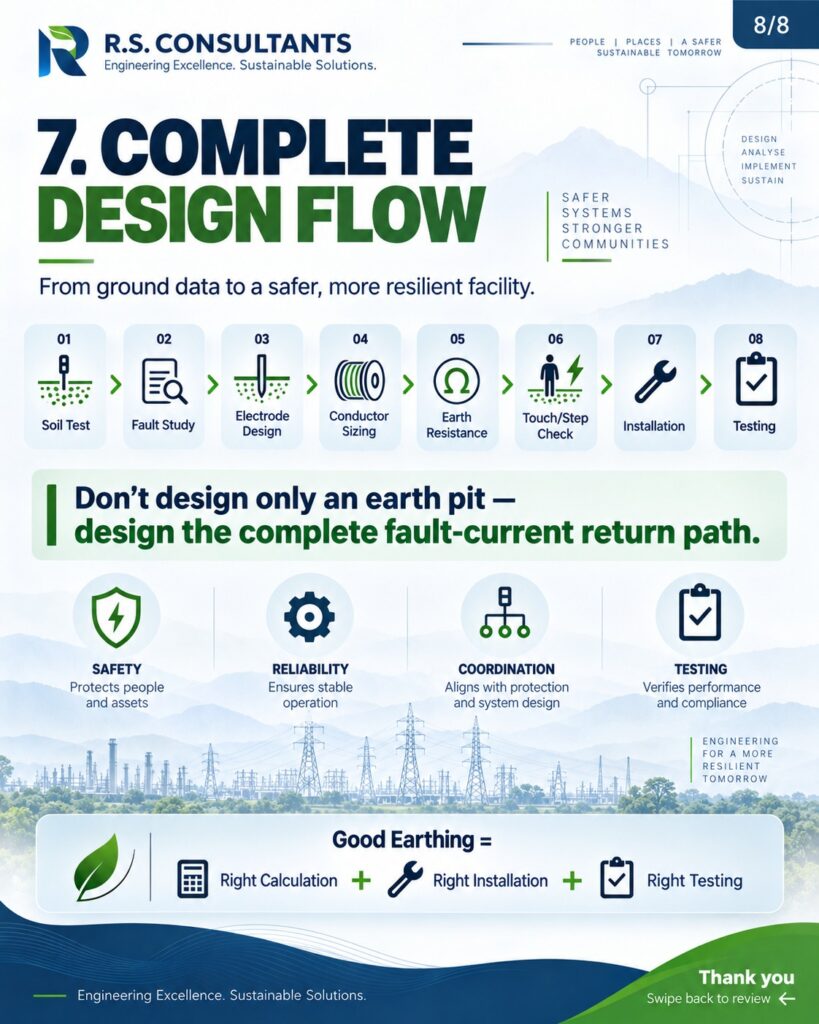

Design Flow

Soil Resistivity → Fault Current → Electrode Arrangement → Conductor Sizing → Earth Resistance → Touch/Step Voltage → Testing

A good earthing system is not just an earth pit. It is a complete safety system for people, equipment and reliable fault clearance.

Good Earthing = Right Calculation + Right Installation + Right Testing
